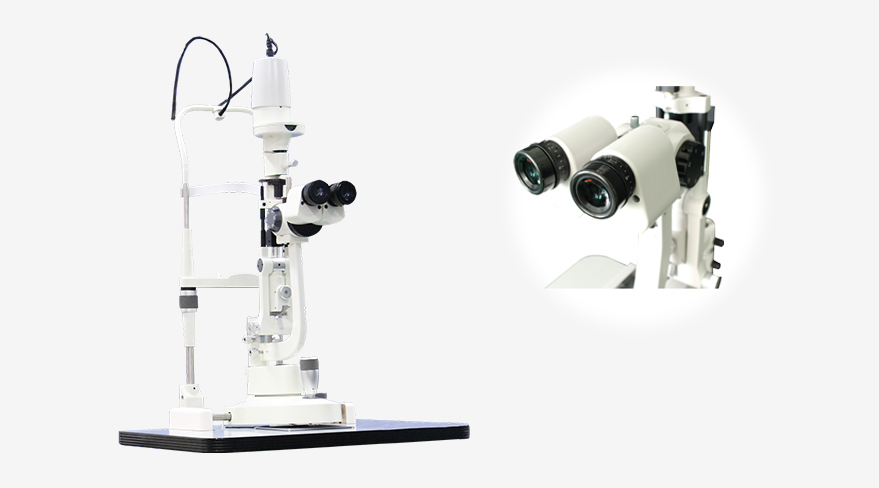

TSl-5Slit Lamp
TSl-5 Slit Lamp adopts HD Galilean Optical System , provide bright anterior eye segment images for doctors.



HD Galilean Optical System, Multicoating technology.







18million pixels image in maximum, easy to observe tiny lesions.







5 times magnification is optional to deal with different observing requirements.






 DSLR imaging system with vivid and colorful images.






 Varies of imaging colors are optional to provide doctors’ photo styles.









Type



Galilean parallel

Magnification Changer

5 steps by drum rotation

Eyepiece

12.5X

Mangnification Ratio

6x(33Φ)  10x(22.5Φ)  16x(14Φ)   25x(8.8Φ)  40x(5.5Φ)

Pupil Distance Range

55 mm~75 mm

Diopter Adjustment

-5D ~ +3D

Slit Width

0mm~14mm adjustable

Slit Height

1mm~14mm adjustable

Aperture Diameter

φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm

Filter

Heat absorption、Grey、Red-free、Cobalt blue

Lighting Bulb

LED Light

Collecting media

DSLR Camera

Pixel

18million

Powersupply

220V 50HZ
