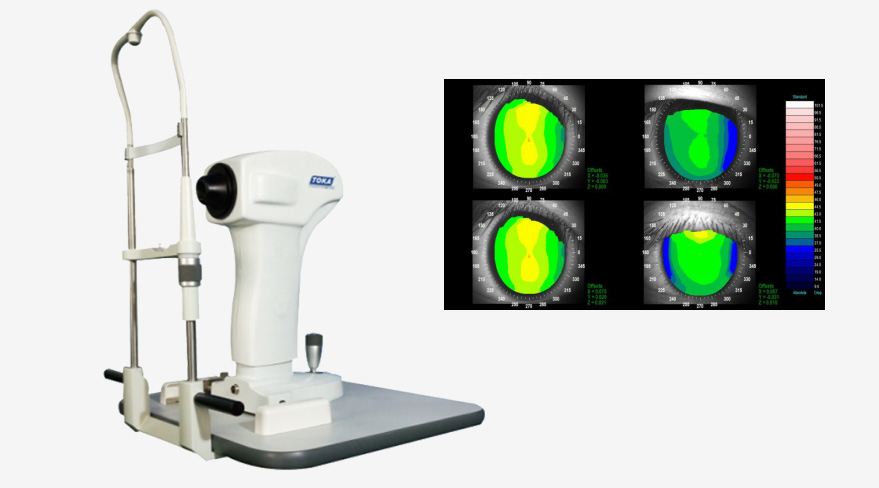

CT-6 Corneal topographer
Clinical application in diagnosis of corneal astigmatism,quantitatively analysis the corneal shape and show the corneal diopter by data or different color such as axial curvature figure,corneal power figure,instantaneous curvature figure,and height graph.It can guide data of wearing corneal contact lens and improve the accuracy of contact lens adapter.



 Placido Cone

 Auto/Manual Measurement Mode

 Display Multi-format Maps

 Axial curvature figure                    Diopter figure

Instantaneous curvature figure        Hypsogram


 Large Patient Database
 Easy Database Operation
 General Corneal Shape Parameters




Measuring method
Placido cone
Measuring curvature radius range
5.5mm-10.0mm
Measuring coverage
9mm
Diopter range
33.75D~61.36D
Placido rings
29
Measurement points
10440
Precision
±0.03mm
